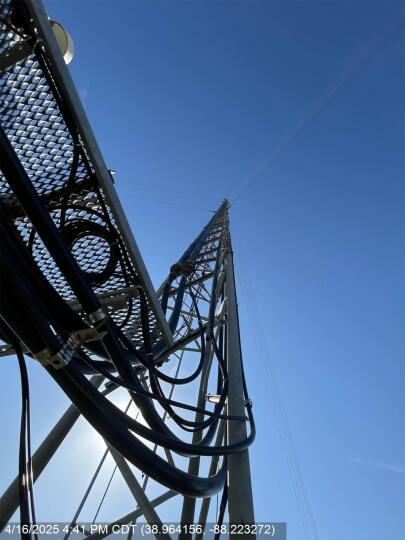

NOAA tower and wiring from ground
Client Logo

NAME

NOAA – Hawkpoint New Site Build

Overview

Second Sight Systems (SSS) successfully completed a crucial project for the National Weather Service, establishing a new site for a NOAA Weather Radio Transmitter near Hawk Point, MO. This project was meticulously executed to meet the specific needs of the National Weather Service and enhance their weather broadcasting capabilities, utilizing a refurbished 8×10 shelter to ensure cost-effectiveness and sustainability.

Project Summary

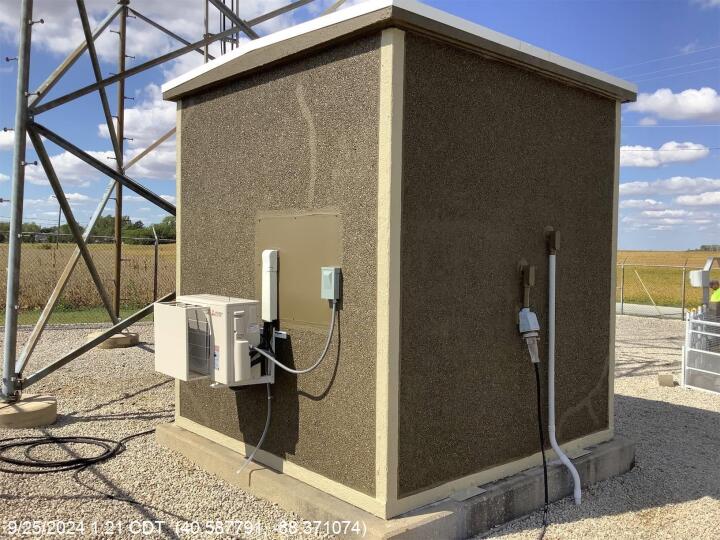

Second Sight Systems completed the installation of a refurbished 8′ x 10′ communications shelter designed to house a Continental Electronic Corporation (CEC) 1000-watt transmitter. The shelter was equipped with appropriate cooling infrastructure to maintain reliable operating conditions for the transmission equipment.

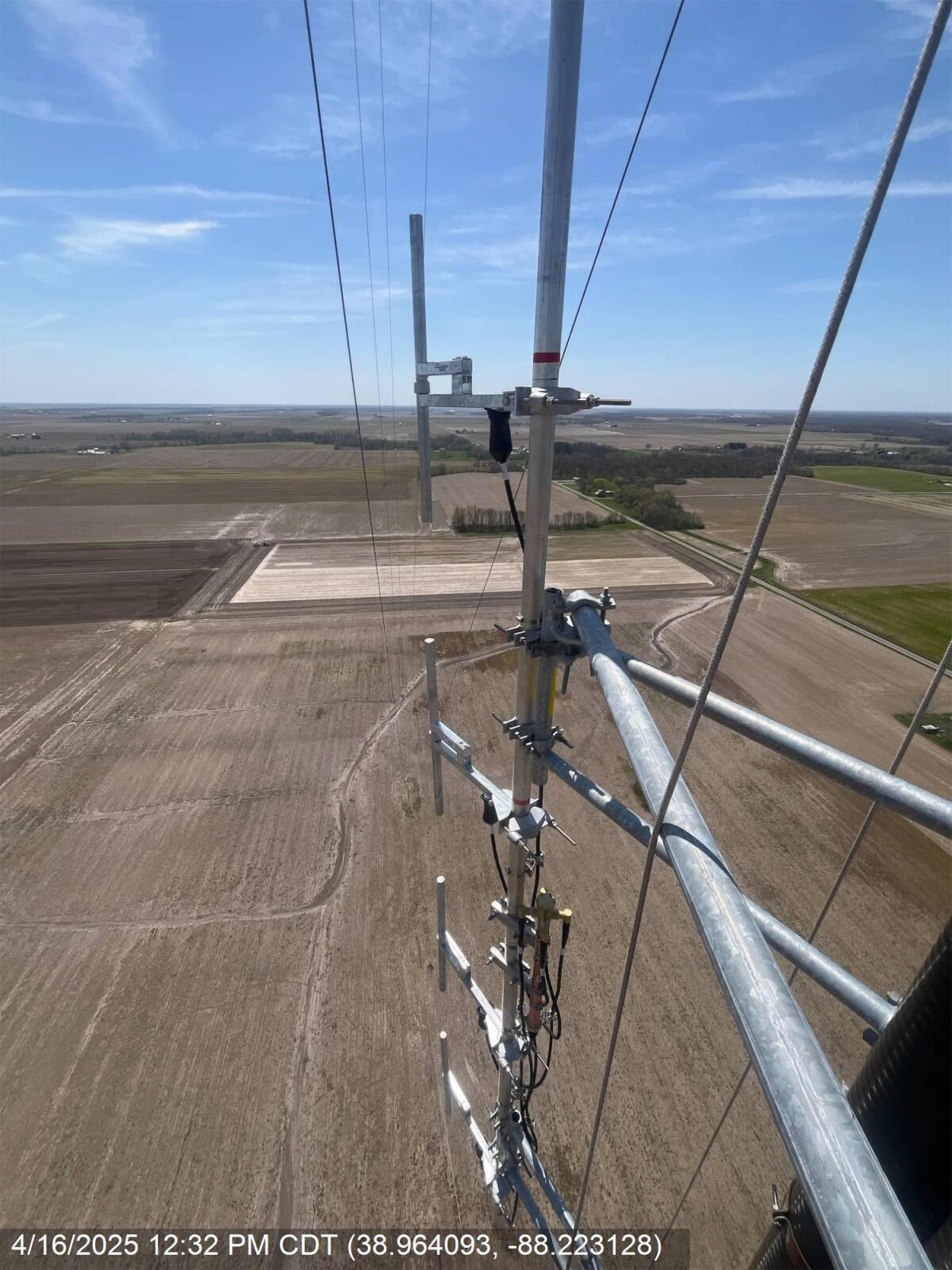

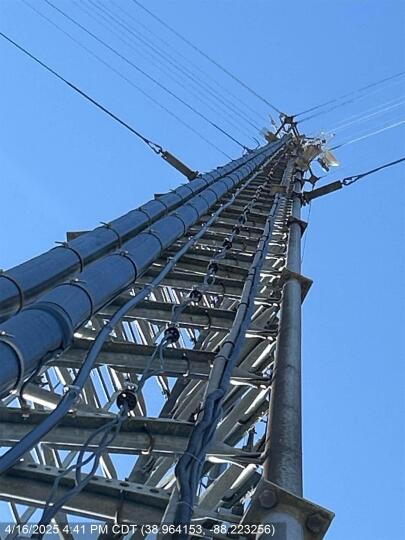

As part of the transmission system installation, the team constructed and installed an antenna with a 220-foot radiation center, providing broad and effective signal coverage. Supporting infrastructure included the installation of standard 200-amp electrical service and the construction of a dedicated concrete pad for a Kohler 12.5 KW generator, ensuring reliable power availability for the site.

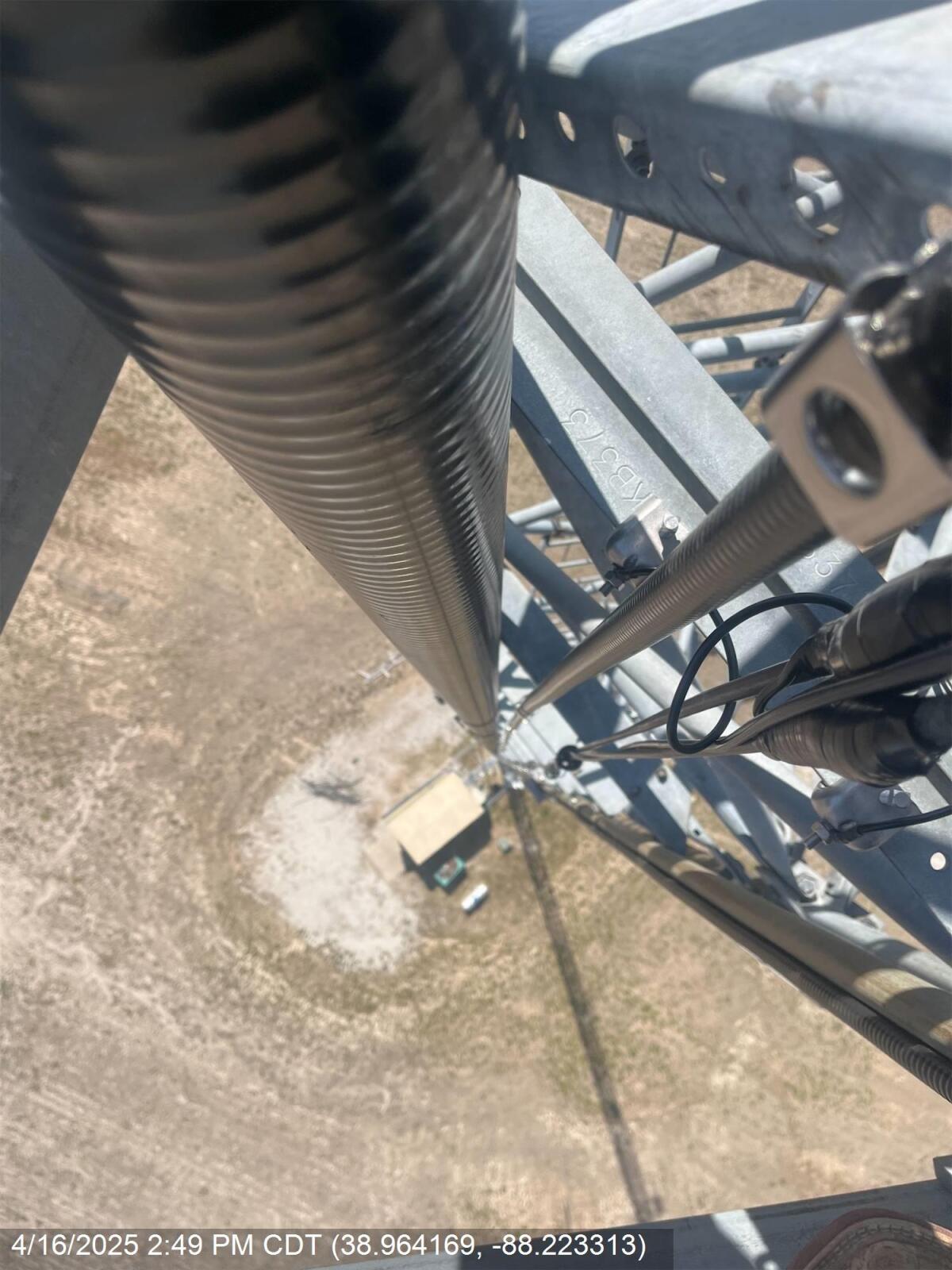

The communications system was connected using 7/8″ 50-ohm coaxial cable installed according to manufacturer specifications, including 6-foot 1/2-inch jumper connections at each end to maintain high-quality signal performance.

To protect critical connections and equipment, an ice bridge was constructed between the tower and the shelter, providing structural support and environmental protection for cabling and infrastructure.

The shelter’s power system was configured with two NEMA L14-30, 240 VAC receptacles, each on a separate 30-amp breaker, positioned to support transmitter operation. A government-provided generator and transfer switch were also installed to ensure reliable power continuity during outages.

“This installation has significantly bolstered the reliability and effectiveness of weather communications for the region.”
